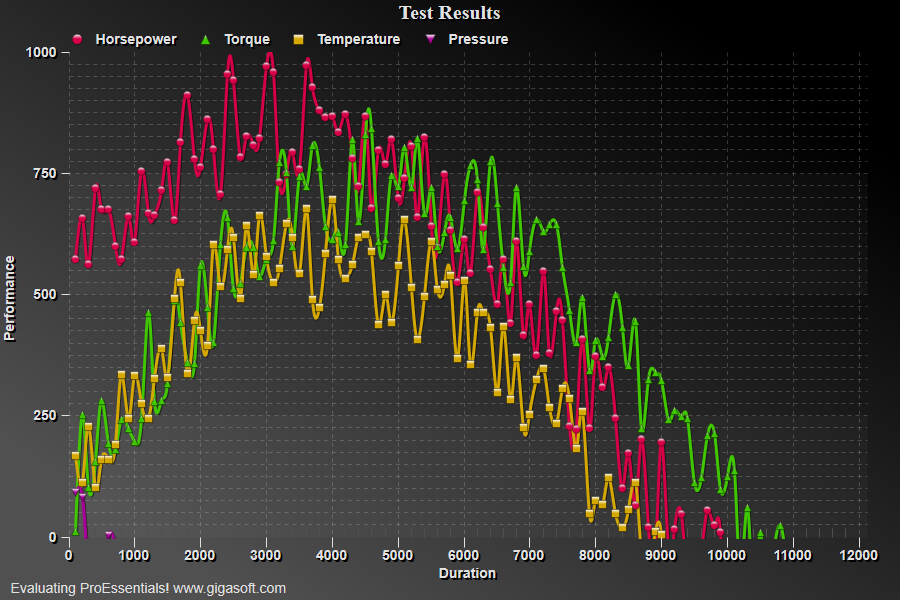

Example 113: Scientific Graph showing manual line density

1//! Very simple example showing how to control grid line and grid tick density. //
2
3// This example builds upon the basic CreateSimpleSGraph '100' example chart //
4CreateSimpleSGraph(Pesgo1);
5
6// Manually Control Y Axis Grid Line Density //
7Pesgo1.PeGrid.Configure.ManualYAxisLine = 250; // Grid line every 250 units
8Pesgo1.PeGrid.Configure.ManualYAxisTick = 25;  // Tick line every 25 units
9Pesgo1.PeGrid.Configure.ManualYAxisTicknLine = true;
10
11// Manually Control Y Axis//
12Pesgo1.PeGrid.Configure.ManualScaleControlY = ManualScaleControl.MinMax;
13Pesgo1.PeGrid.Configure.ManualMinY = 0;
14Pesgo1.PeGrid.Configure.ManualMaxY = 1000;
15
16// Set Various Other Properties //
17Pesgo1.PeColor.BitmapGradientMode = true;
18Pesgo1.PeColor.QuickStyle = QuickStyle.DarkNoBorder;
19Pesgo1.PeGrid.LineControl = GridLineControl.Both;
20Pesgo1.PeGrid.Option.YAxisLongTicks = true;
21
22// Generally call ReinitializeResetImage at end **'
23Pesgo1.PeFunction.ReinitializeResetImage();
24Pesgo1.Invalidate();
25// Optionally call Pego1.Refresh() if you are not seeing changes immediately
