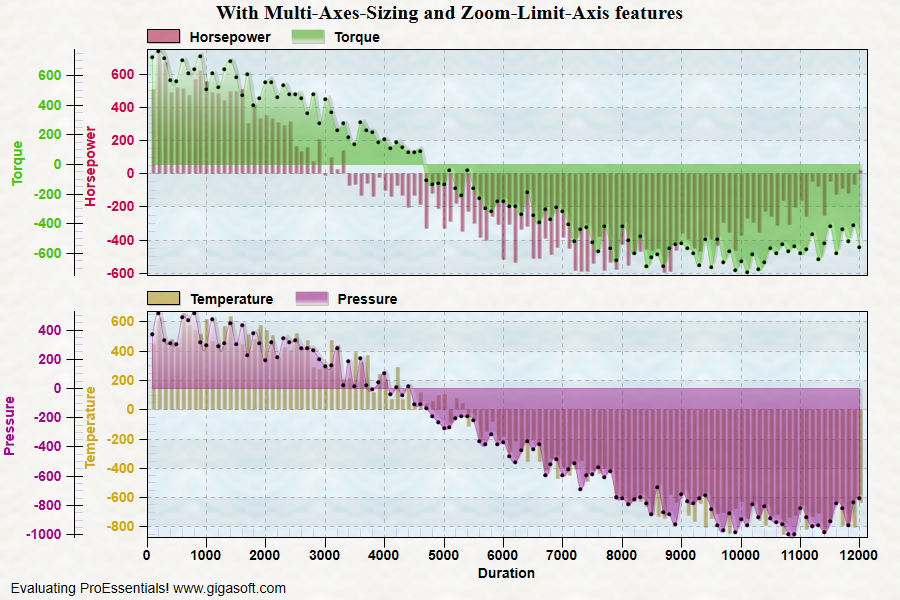

Example 104: Scientific Graph showing overlapped multi axes 2

1//! Right button click to show popup menu. //
2//! Double Click to show customization dialog. //
3//! Left-Click and drag to draw zoom box. Use popup memu or 'z' to undo zoom. //
4
5// This example builds upon the basic CreateSimpleSGraph '100' example chart //
6CreateSimpleSGraph(Pesgo1);
7
8// Create 4 separate axes and then overlap in two groups //
9Pesgo1.PeGrid.MultiAxesSubsets[0] = 1; // 1 subset on first axis
10Pesgo1.PeGrid.MultiAxesSubsets[1] = 1; // 1 subset on second axis
11Pesgo1.PeGrid.MultiAxesSubsets[2] = 1; // 1 subset on third axis
12Pesgo1.PeGrid.MultiAxesSubsets[3] = 1; // 1 subset on fourth axis
13Pesgo1.PeGrid.OverlapMultiAxes[0] = 2; // overlap first two axes in one group
14Pesgo1.PeGrid.OverlapMultiAxes[1] = 2; // overlap second two axes in one group
15Pesgo1.PeUserInterface.Allow.MultiAxesSizing = true;
16
17Pesgo1.PeString.MainTitle = "With Multi-Axes-Sizing and Zoom-Limit-Axis features";
18Pesgo1.PeUserInterface.Allow.ZoomLimits = ZoomLimits.AxisHorizontal;
19
20// Match axis color and label to subset label //
21Pesgo1.PeGrid.WorkingAxis = 0;
22Pesgo1.PeColor.YAxis = Pesgo1.PeColor.SubsetColors[0];
23Pesgo1.PeString.YAxisLabel = "Horsepower";
24Pesgo1.PePlot.Method = SGraphPlottingMethod.Bar;
25Pesgo1.PeGrid.WorkingAxis = 1;
26Pesgo1.PeColor.YAxis = Pesgo1.PeColor.SubsetColors[1];
27Pesgo1.PeString.YAxisLabel = "Torque";
28Pesgo1.PePlot.Method = SGraphPlottingMethod.SplineArea;
29Pesgo1.PeGrid.WorkingAxis = 2;
30Pesgo1.PeColor.YAxis = Pesgo1.PeColor.SubsetColors[2];
31Pesgo1.PeString.YAxisLabel = "Temperature";
32Pesgo1.PePlot.Method = SGraphPlottingMethod.Bar;
33Pesgo1.PeGrid.WorkingAxis = 3;
34Pesgo1.PeColor.YAxis = Pesgo1.PeColor.SubsetColors[3];
35Pesgo1.PeString.YAxisLabel = "Pressure";
36Pesgo1.PePlot.Method = SGraphPlottingMethod.SplineArea;
37Pesgo1.PeGrid.WorkingAxis = 0;
38Pesgo1.PeString.TextShadows = TextShadows.NoShadows;
39
40// Set Various Other Properties ///
41Pesgo1.PeFont.FontSize = FontSize.Large;
42Pesgo1.PeLegend.SubsetLineTypes[0] = LineType.MediumSolid;
43Pesgo1.PeLegend.SubsetLineTypes[1] = LineType.MediumSolid;
44Pesgo1.PeLegend.SubsetLineTypes[2] = LineType.MediumSolid;
45Pesgo1.PeLegend.SubsetLineTypes[3] = LineType.MediumSolid;
46Pesgo1.PePlot.MarkDataPoints = true;
47
48Pesgo1.PeColor.BitmapGradientMode = true;
49Pesgo1.PeColor.QuickStyle = QuickStyle.LightLine;
50Pesgo1.PePlot.MarkDataPoints = true;
51Pesgo1.PeFont.FontSize = FontSize.Large;
52Pesgo1.PeLegend.Style = LegendStyle.OneLineTopOfAxis;
53Pesgo1.PeGrid.LineControl = GridLineControl.Both;
54Pesgo1.PeUserInterface.Menu.ShowLegend = MenuControl.Show;
55Pesgo1.PeUserInterface.Menu.LegendLocation = MenuControl.Show;
56
57// subset colors //
58Pesgo1.PeColor.SubsetColors[0] = MainWindow.DemoColors[0];
59Pesgo1.PeColor.SubsetColors[1] = MainWindow.DemoColors[1];
60Pesgo1.PeColor.SubsetColors[2] = MainWindow.DemoColors[2];
61Pesgo1.PeColor.SubsetColors[3] = MainWindow.DemoColors[3];
62
63// change alphas to 100 //
64Pesgo1.PeColor.SubsetColors[0] = Color.FromArgb(100, Pesgo1.PeColor.SubsetColors[0].R, Pesgo1.PeColor.SubsetColors[0].G, Pesgo1.PeColor.SubsetColors[0].B);
65Pesgo1.PeColor.SubsetColors[1] = Color.FromArgb(100, Pesgo1.PeColor.SubsetColors[1].R, Pesgo1.PeColor.SubsetColors[1].G, Pesgo1.PeColor.SubsetColors[1].B);
66Pesgo1.PeColor.SubsetColors[2] = Color.FromArgb(100, Pesgo1.PeColor.SubsetColors[2].R, Pesgo1.PeColor.SubsetColors[2].G, Pesgo1.PeColor.SubsetColors[2].B);
67Pesgo1.PeColor.SubsetColors[3] = Color.FromArgb(100, Pesgo1.PeColor.SubsetColors[3].R, Pesgo1.PeColor.SubsetColors[3].G, Pesgo1.PeColor.SubsetColors[3].B);
68
69// Generally call ReinitializeResetImage at end **'
70Pesgo1.PeFunction.ReinitializeResetImage();
71Pesgo1.Invalidate();
72// Optionally call Pego1.Refresh() if you are not seeing changes immediately
