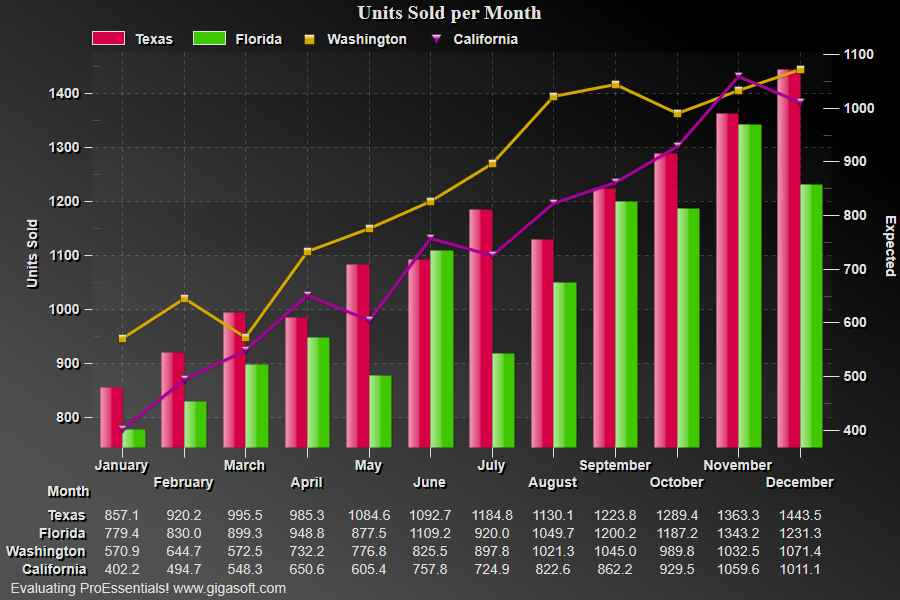

Example 003: Graph With Right Y Axis Comparison Subsets

1// This example builds upon the basic CreateSimpleGraph '000' example chart //
2CreateSimpleGraph(Pego1);
3
4// Set plotting method to Bar //
5Pego1.PePlot.Method = GraphPlottingMethod.Bar;
6
7// Designate last 2 subsets as right y axis comparison subsets
8Pego1.PePlot.RYAxisComparisonSubsets = 2;
9
10// Set Comparison PlottingMethod
11Pego1.PePlot.MethodII = GraphPlottingMethodII.PointsPlusLine;
12
13// Label Right Y Axis //
14Pego1.PeString.RYAxisLabel = "Expected";
15
16// Other various properties //
17Pego1.PeColor.BitmapGradientMode = true;
18Pego1.PeColor.QuickStyle = QuickStyle.DarkNoBorder;
19
20Pego1.PeColor.SubsetColors[0] = MainWindow.DemoColors[0];
21Pego1.PeColor.SubsetColors[1] = MainWindow.DemoColors[1];
22Pego1.PeColor.SubsetColors[2] = MainWindow.DemoColors[2];
23Pego1.PeColor.SubsetColors[3] = MainWindow.DemoColors[3];
24
25// Generally call ReinitializeResetImage at end **'
26Pego1.PeFunction.ReinitializeResetImage();
27Pego1.Invalidate();
28// Optionally call Pego1.Refresh() if you are not seeing changes immediately
